iCAD Update Notes (March 2025)
Hello, and welcome again,
We are excited to bring more functions and features to our users. This release includes major and minor enhancements to the iCAD product suite - mainly Data Processing tools, Diversion Weir Design and TeraForm modules.
Learn about the update features and functions included in this release below.
What's New
For this update the following major functionalities and capabilities are included, along with some bug fixes.
Terraform
-

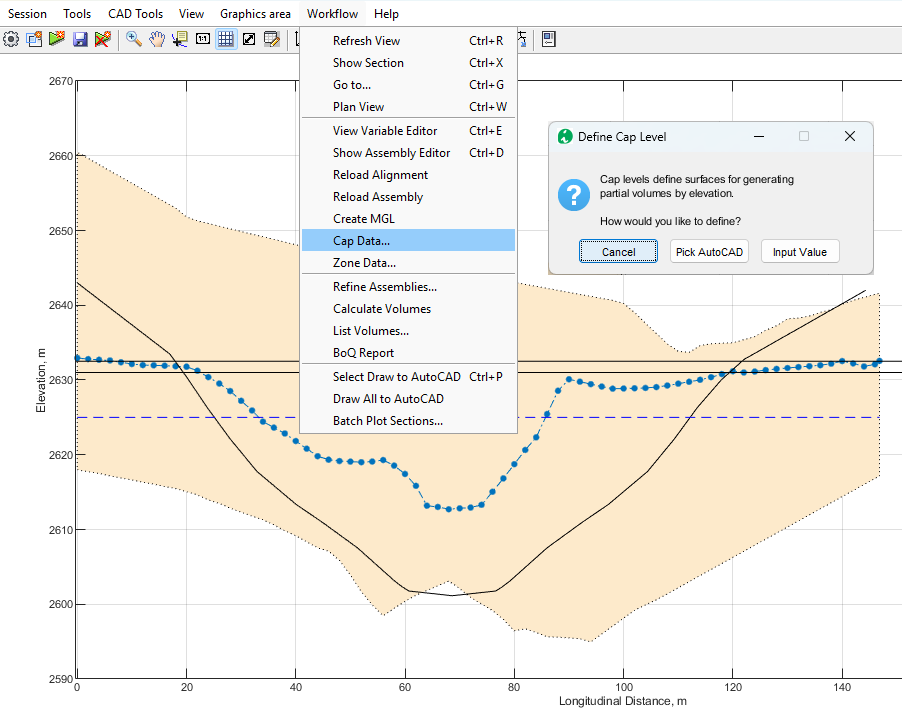

A new feature is integrated, that allows to incoproporate cap levels for volume calculation. The command is available from the workflow menu, as shown below.
Users can define design levels either from AutoCAD or provide a fixed elevation value for cap level information.
-

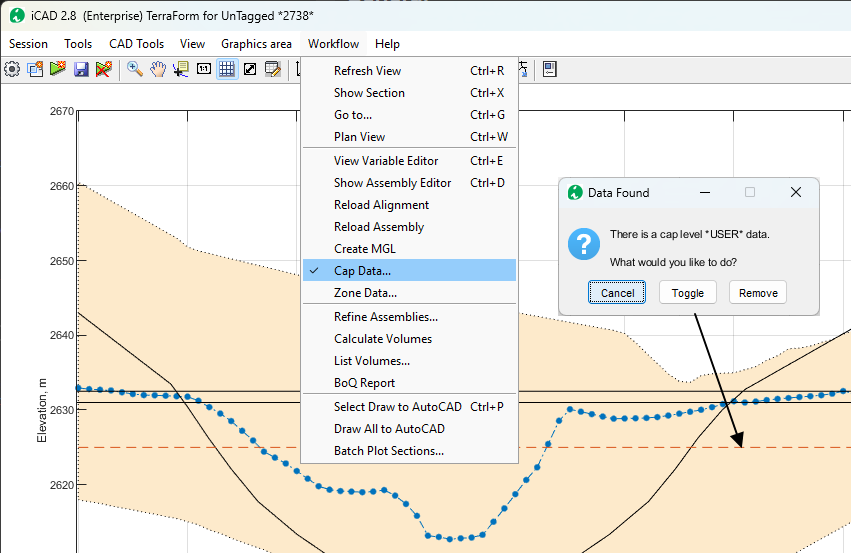

Updates to allow volume extraction using cap levels. Cap levels can be toggled on to generate new volume informaitons considering defined cap levels.

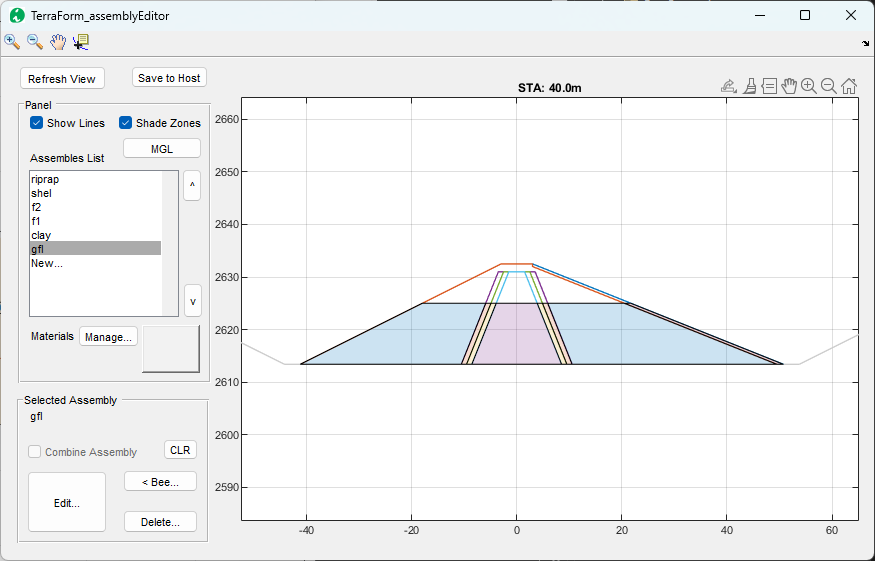

The fill volumes are calcualted for each zone below the cap level at the station of interest.
-

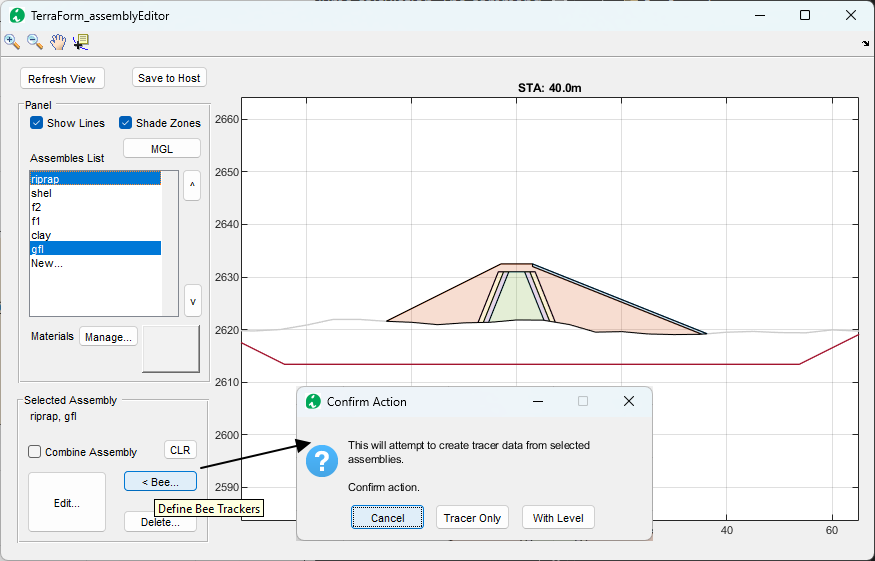

A new feature is included to process two assemblies, and extract geometries. This feature allows versatility in defining complex assembly shapes.

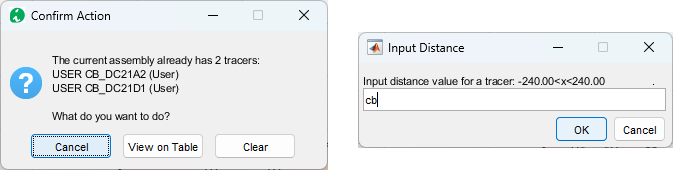

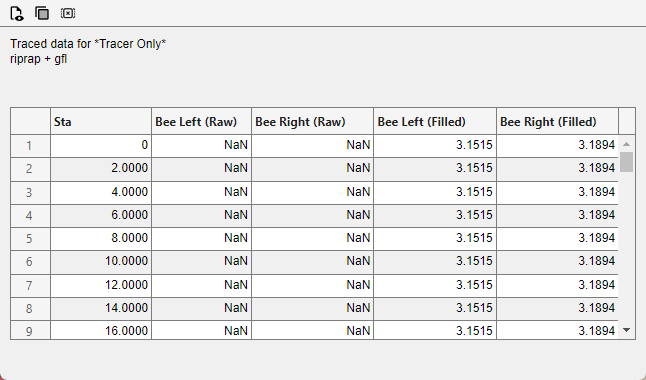

THe results are presented on the table view interface as shown below. These can be copied and directly applied as tracer bees. Alternatively, they can be processed further in a spreadsheet application and used as tracer data.
-
Related feature allowing the use of table data as tracer bee sources, to define complex shapes.

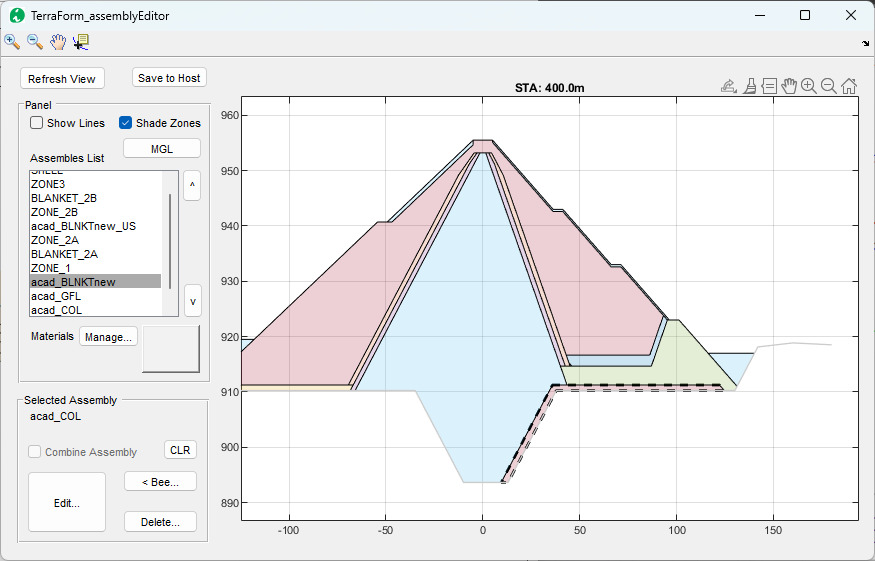

With this method complex shapes can be modelled effectively.
ChannelRate
-

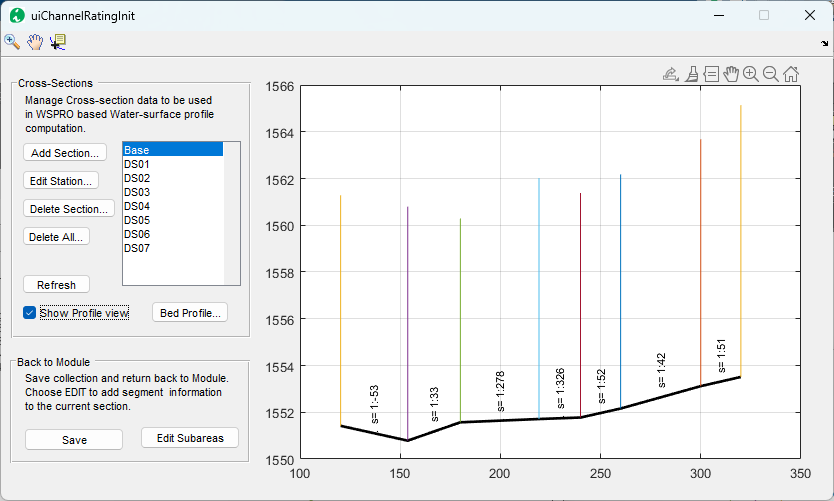

The multiple cross-sectoin manager now displays segment slope information automatically, providing additional guide to the user.
-

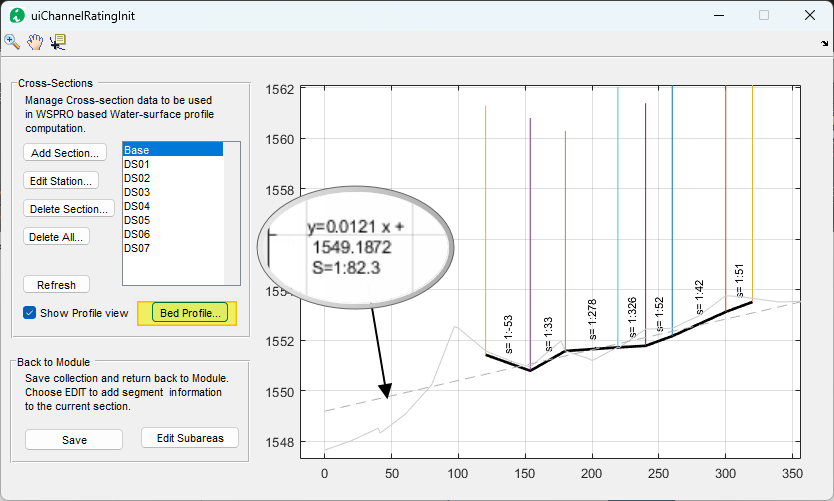

A new button is included to import bed level information, and auto genrate average slope information from the data.
Bug Fixes
- Major compatibility issue fixed.
- Data and AutoCAD object selection handling refined.
END.
